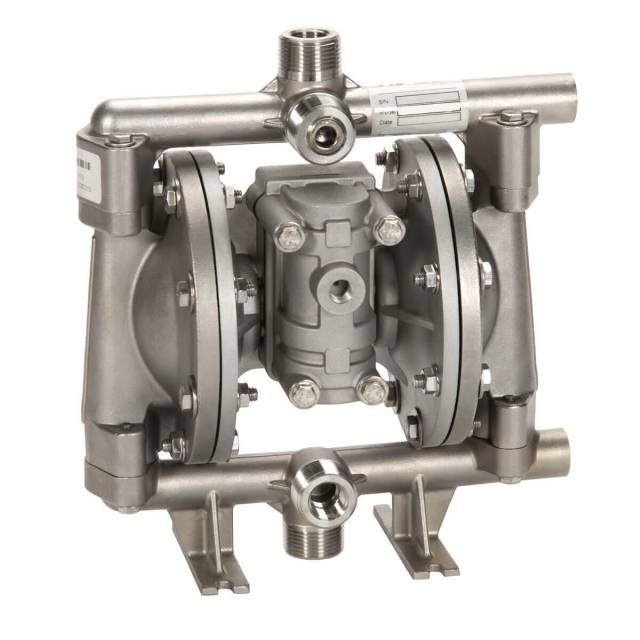

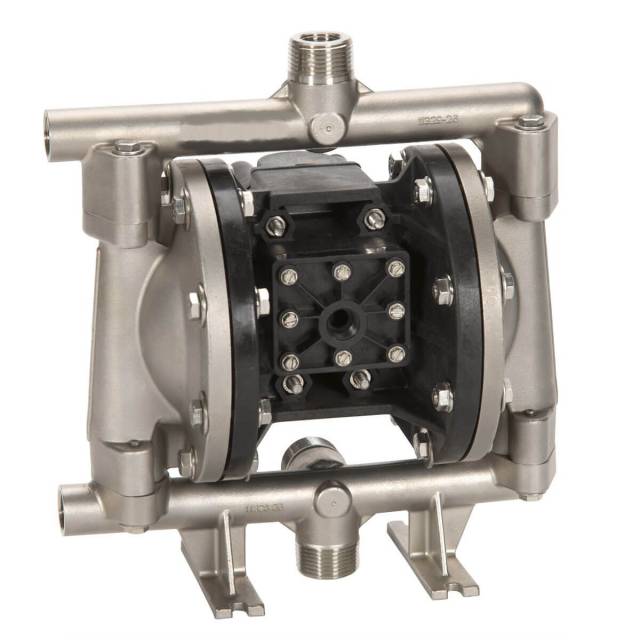

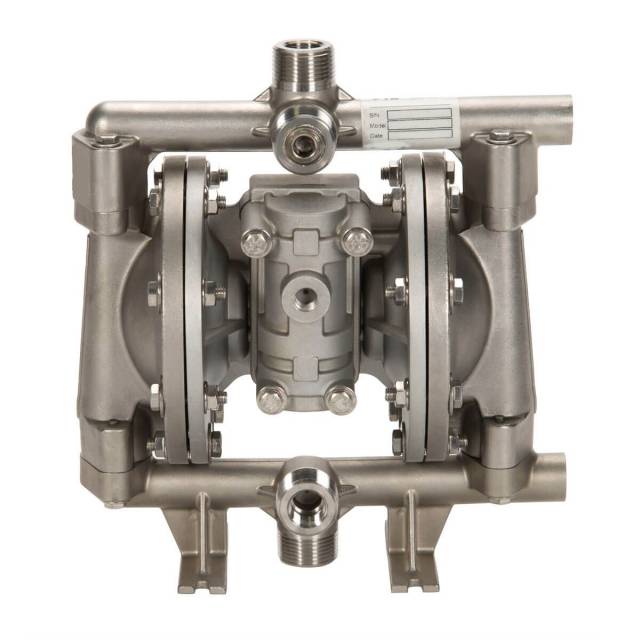

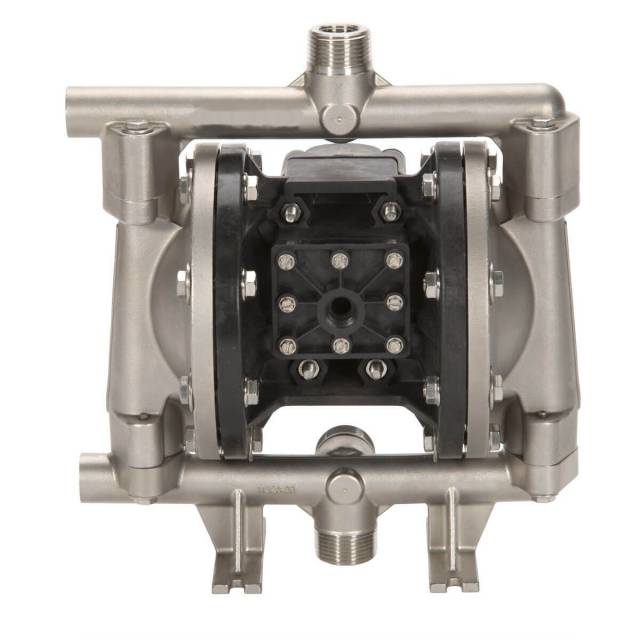

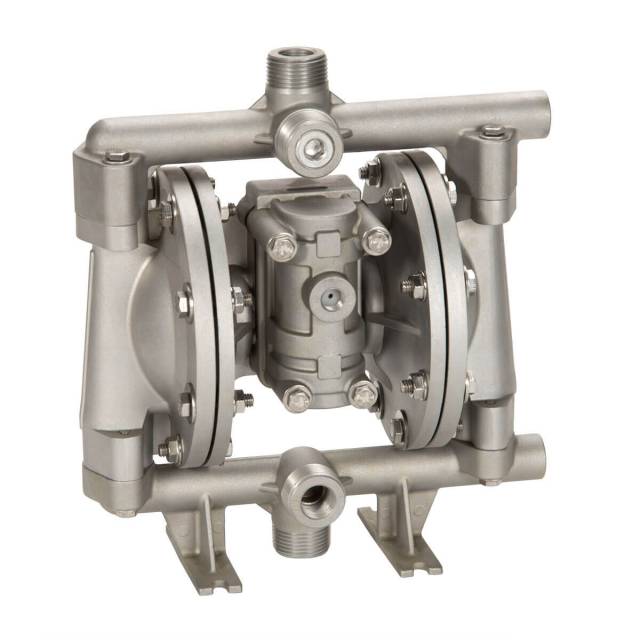

A050 - ½ Inch Metal Pumps
Enquiry Item
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Specifications
| PHYSICAL SPECIFICATIONS | ||
|---|---|---|
| Liquid Port Size: | 1/2 in. | |
| Liquid Connection Types: | FNPT (FBSPT) | |
| Standard Suction Port: | Right | |
| Standard Discharge Port: | Right | |
| Air Inlet Connection Size: | 1/4 in. FNPT | |
| Air Exhaust Connection Size: | 3/8 in. FNPT | |
| Aluminum | Stainless Steel | |
| Max Height: | 11.2 in. (284 mm) | 11.2 in. (284 mm) |
| Max Width: | 10.3 in. (262 mm) | 10.3 in. (262 mm) |
| Max Depth: | 6.4 in. (163 mm) | 6.4 in. (163 mm) |
| Weight: | 10 lbs (4.5 kg) | 20 lbs (9.1 kg) |
| CONSTRUCTION | |
|---|---|
| Wet End: | Aluminum, Anodized Aluminum, Stainless Steel |
| Air End: | Aluminum, Glass Filled Polypropylene |
| Diaphragm: | Geolast®, PTFE, Santoprene®, FKM |
| Balls: | Geolast®, PTFE, Santoprene®, Stainless Steel, FKM |
| Seats: | Aluminum, Nylon, Polypropylene, Stainless Steel |
| O-Rings: | Buna-N, EPDM, PTFE, FKM |
| Hardware: | Stainless Steel, Zinc Plated Steel |
| Muffler: | Metal, Plastic |
Performance
Performance Curve
| PERFORMANCE | |
|---|---|
| Max Flow: | 15 gpm (56.8 lpm) |
| Max Air Pressure: | 120 psi (8.2 bar) |
| Max Static Suction Head: | 23 ft-H2O (7.0 m-H2O) |
| Max Suction Lift (Dry): | 15 ft-H2O (4.5 m-H2O) |
| Max Suction Lift (Wet): | 31 ft-H2O (9.4 m-H2O) |
| Max Solids: | 1/8 in. (3.2 mm) |
| Avg. Displacement Per Stroke: | (0.03 gal / 0.10 L) |
| Sound Level: | 80 dBA (with Muffler) |
