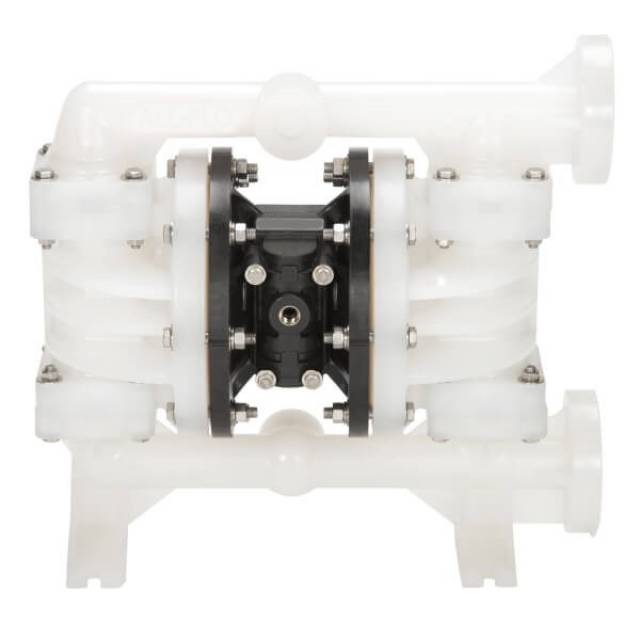

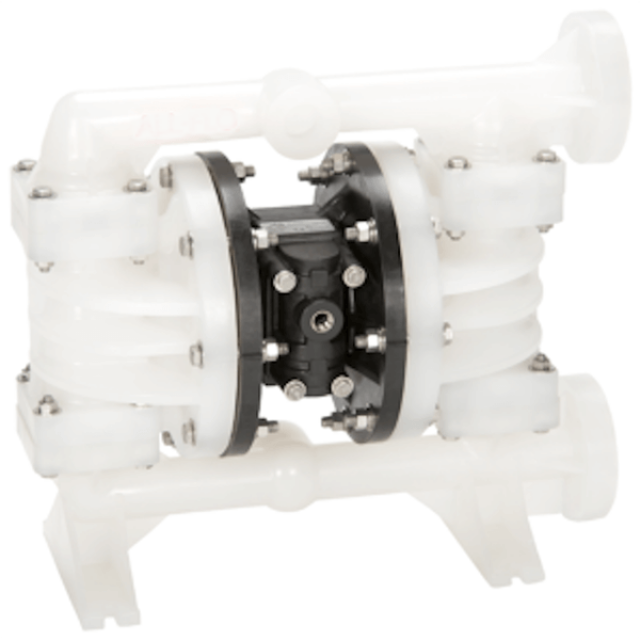

A100 - 1 Inch Plastic Pumps
Enquiry Item
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Specifications
| PHYSICAL SPECIFICATIONS | ||
|---|---|---|
| Liquid Port Size: | 1 in. | |
| Liquid Connection Types: | FNPT, FBSPT, ANSI / DIN Flange | |
| Discharge Location: | Right | |
| Liquid Connection: | Right | |
| Air Inlet Connection Size: | 1/4 in. FNPT | |
| Air Exhaust Connection Size: | 3/8 in. FNPT | |
| Polypropylene | PVDF | |
| Max Height: | 16.32 in. (414.5 mm) | 16.32 in. (414.5 mm) |
| Max Width: | 17.26 in. (438.4 mm) | 17.26 in. (438.4 mm) |
| Max Depth: | 8.88 in. (225.6 mm) | 8.88 in. (225.6 mm) |
| Weight: | 20 lbs (9.1 kg) | 30 lbs (13 kg) |
| CONSTRUCTION | |
|---|---|
| Wet End: | Polypropylene, PVDF |
| Air End: | Glass Filled Polypropylene |
| Diaphragm: | Geolast®, PTFE with Santoprene® backup, Santoprene®, FKM |
| Balls: | Geolast®, PTFE, Santoprene®, FKM |
| Seats: | Polypropylene, PVDF |
| O-Rings: | Buna-N, EPDM, PTFE, FKM |
| Hardware: | PTFE Coated Stainless Steel, Stainless Steel |
| Muffler: | Plastic |
Performance
Performance Curve
| PERFORMANCE | |
|---|---|
| Max Flow: | 41 gpm (155.8 lpm) |
| Max Air Pressure: | 120 psi (8.2 bar) |
| Max Static Suction Head: | 23 ft-H2O (7.0 m-H2O) |
| Max Suction Lift (Dry): | 15 ft-H2O (4.5 m-H2O) |
| Max Suction Lift (Wet): | 26 ft-H2O (7.9 m-H2O) |
| Max Solids: | 1/4 in. (6.4 mm) |
| Avg. Displacement Per Stroke: | (0.08 gal / 0.31 L) |
| Sound Level: | 80 dBA (with Muffler) |
