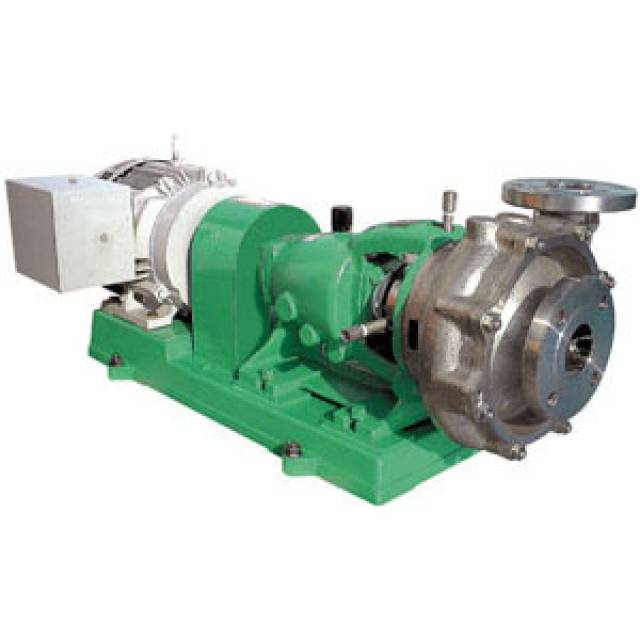

Latex Emulsion Pump Horizontal Type (BLS)
- Prevention of Environmental Pollution.
- Enhance Productivity
- Full-Open Type Impeller
- Buffed Casing & Impeller
- Free from clogging and leakage resulting from polymerization(coagulum)of Latex liquid. Compared with conventional pumps, BLS does not required frequent overhauling with lower maintenance cost.
- BLS has a lowpolymerization rate of latex liquid which is one-thirtieth of conventional pumps.
- It helps maintenance of the original latex quality.
- In addition to transferring chemically stable synthetic latex liquid, BLS can also be used for clog-free transfer of more chemically unstable 750mPa·s∼1000mPa·s, and 1400mPa·s natural latex liquids.
Applications : - Transportation of Latex liquid
- Emulsion liquid
- Crumb Slurry
- Viscous liquid and Adhesive liquid.
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Materials
Stainless Steel SCS13/SCS14/SCS16
Other specific materials avaialble upon request.
Temperature
0ºC∼80ºC
Shaft Seal
Special design seal construction for latex.
Knife-edge mechanical seal + Gand packing construction backup.
Knife-edge Mechanical seal + Multi-spring type mechanical seal construction backup.
Other Mechanical seal (single or double) and Gland packing may be installed on request.
Bearing
Ball bearing (Oil bath system)
Water jacketed bearing housing is available when temperature exceeds 120ºC.
Pump selection tables are based on pumping liquid with specific gravity of 1.0 and viscosity of 1.0mPa·s.
Motor output (kW) is shown with dotted lines.
If your latex has viscosity of 50mPa·s or greater, select an appropriate pump by multiplying the output by the applicable coefficient of viscosity given below.
(Viscosity in this case is apparent viscosity)
50∼0499mPa·s---1.2 , 500∼0999mPa·s---1.3 , 1000∼1999mPa·s---1.4
If your latex has specific gravity of more than 1.0, mutiply the output by that specific gravity.
