JIS Standard Pumps

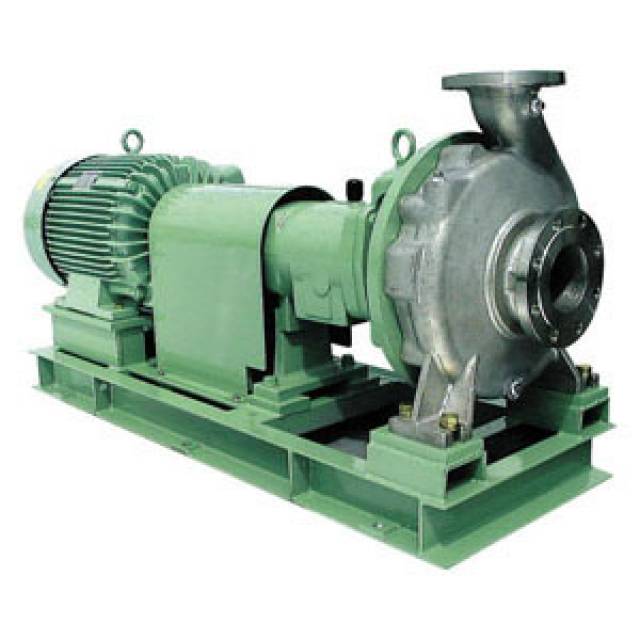

Foot Support Volute Pump (GS/GF)
Enquiry Item
- Foot supported Back-Pull-Out construction makes maintenance easy without disturbing motor and piping.
- Capable to handle pumping temperature (-50ºC∼200ºC).
- GS/GF is able to conform to API610 Standard.
- High efficiency / Energy Saving
Out Of Stock!
This product is out of stock, submit your email and we will update once it restock.
Materials
Stainless Steel SCS13/SCS14/SCS16
Cast Iron FC200
Ductile Iron FCD450 (For HC Series Pumps)
For cast-iron material the pump model is GF.
Other specific materials.
SCS23, Nickel Alloy, Hastelloy, Duplex Stainless Steel, Titanium.
Temperature
-50ºC∼200ºC
-5ºC∼120ºC in case of Cast & Ductile Iron.
Shaft Seal
Gland packing.
Self and external flushing type .
Single mechanical seal
Double Mechanical Seal.
Additional Special Mechanical Seal may be installed on request.
Bearing
Ball bearing (Oil bath system).
Water jacketed bearing housing is available when temperature exceeds 120ºC.
